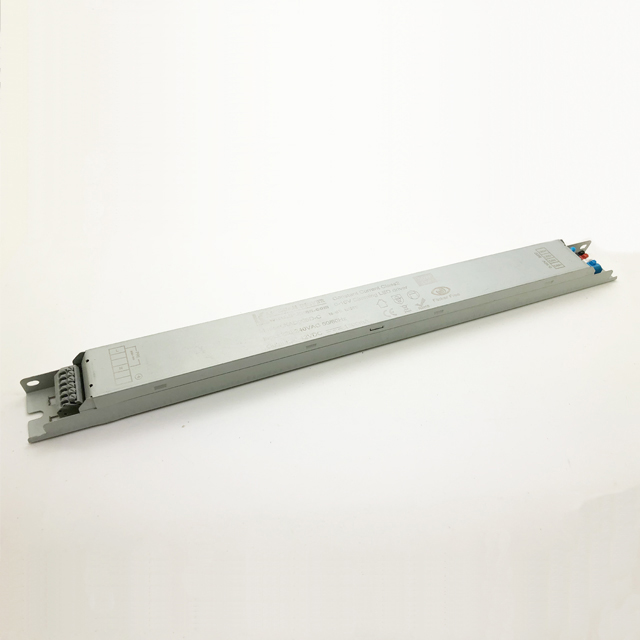

LKAD082D-C 80W 25-42V 1900mA Linear Lamp 0-10V dimming led driver
  • LKAD082D-C 80W 25-42V 1900mA Linear Lamp 0-10V dimming led driver

LKAD082D-C 80W 25-42V 1900mA Linear Lamp 0-10V dimming led driver

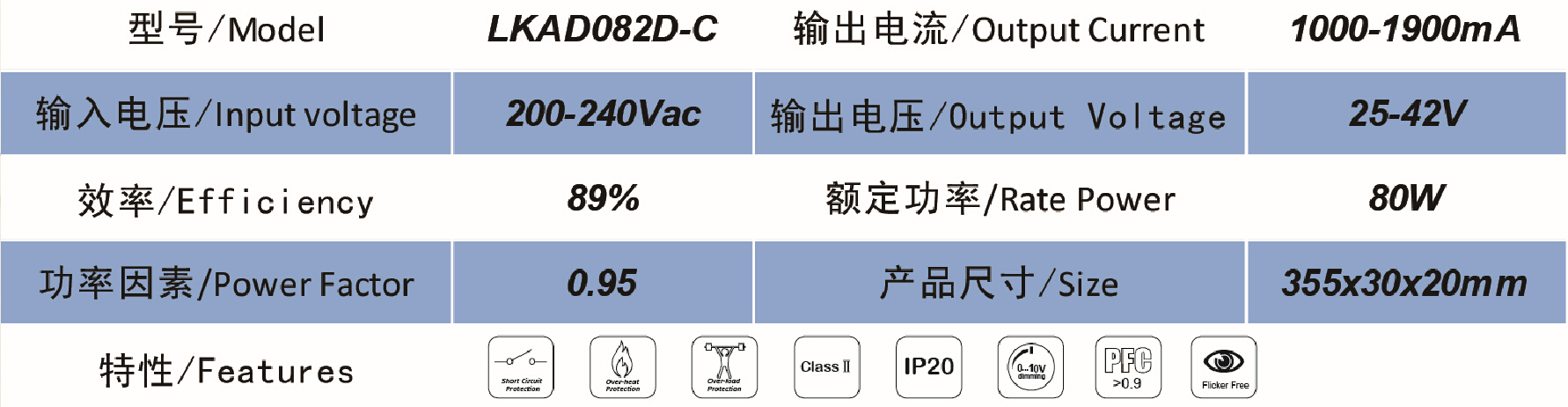

  • Product model : LKAD082D-C
  • Input voltage : 200-240Vac
  • Output power(W) : 82W
  • Output voltage : 25-42Vdc
  • Output current(A) : 1000-1900mA
  • Light adjustment : 0-10V Dimming
  • Size(MM) : 355x30x20mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD082D-C 80W 25-42V 1900mA Linear Lamp 0-10V dimming  led driver


Features

  • 200-240Vacc(50/60Hz) Input
  • Hight efficiency,hight PF,good steady;
  • Isolated,0-10V dimming ,adjusting much smoothly
  • independent, ClassⅡconstant current type;
  • short circuit/over load/over current/ over temperature protection;
  • 100% full load burn-in test;
  • degree of protection IP20;
  • Special for LED linear lamp, LED grille lamp;
  • 5 years warranty.
