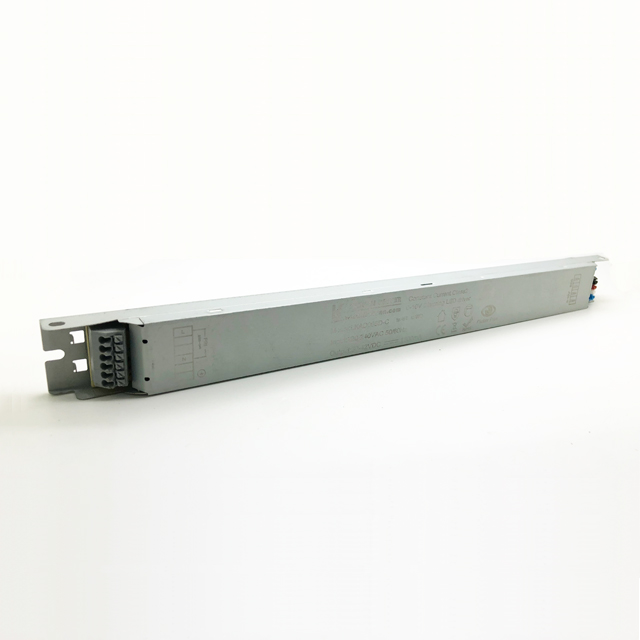

LKAD072D 63W 25-42V 1500mA Linear Lamp triac dimmable led driver
  • LKAD072D 63W 25-42V 1500mA Linear Lamp triac dimmable led driver

LKAD072D 63W 25-42V 1500mA Linear Lamp triac dimmable led driver

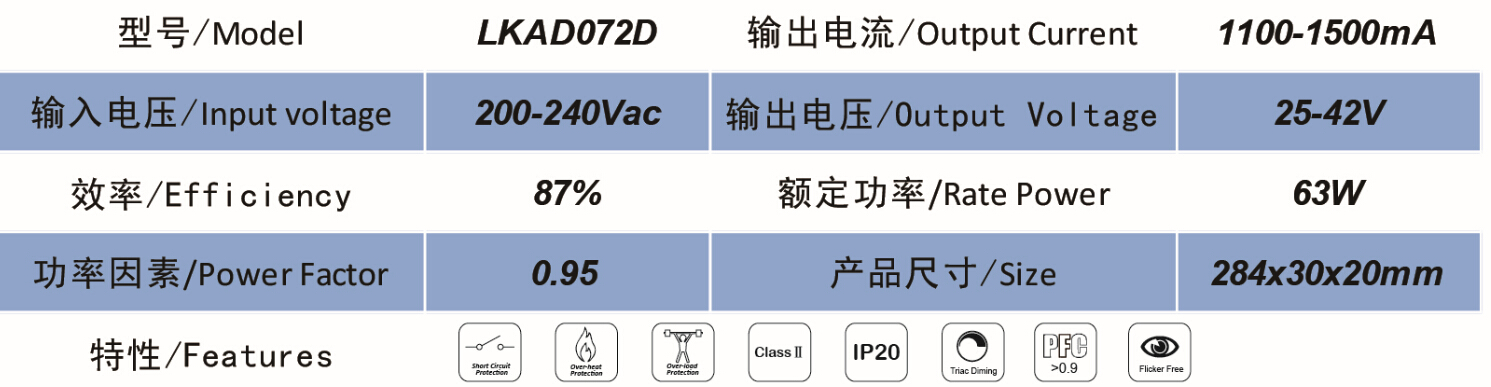

  • Product model : LKAD072D
  • Input voltage : 200-240Vac
  • Output power(W) : 63W
  • Output voltage : 25-42Vdc
  • Output current(A) : 1100-1500mA
  • Light adjustment : Triac Dimming
  • Size(MM) : 284x30x20mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD072D 63W 25-42V 1500mA Linear Lamp triac dimmable led driver


Features

  • 200-240Vacc(50/60Hz) Input
  • Hight efficiency,hight PF,good steady;
  • Isolated,leading (or trailing) triac dimming,dimming much smoothly
  • independent, ClassⅡconstant current type;
  • short circuit/over load/over current/ over temperature protection;
  • 100% full load burn-in test;
  • degree of protection IP20;
  • Special for LED linear lamp, LED grille lamp;
  • 5 years warranty.
