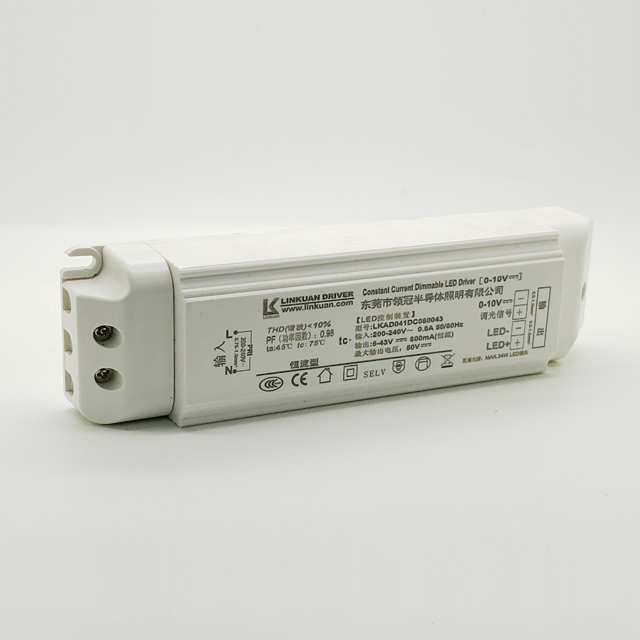

LKAD041D-C 46W 5-42V 1100mA 0-10V Dimming LED drivers
  • LKAD041D-C 46W 5-42V 1100mA 0-10V Dimming LED drivers

LKAD041D-C 46W 5-42V 1100mA 0-10V Dimming LED drivers

  • Product model : LKAD041D-C
  • Input voltage : 200-240Vac
  • Output power(W) : 46W
  • Output voltage : 5-42Vdc
  • Output current(A) : 700-1100mA
  • Light adjustment : 0-10V Dimming
  • Size(MM) : 162x45x31mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD041D-C 46W 5-42V 1100mA 0-10V Dimming LED drivers


Features

  • 200-240VAC(50/60Hz) Input
  • High efficiency, high power factor, high stability, high light ratio
  • Flicker free
  • Short circuit,over voltage,over current and over temperature protection;
  • Remote control performance is stable, any angle direction can be controlled.
  • independent, ClassⅡ constant current type;
  • degree of protection IP20;
  • can be achieved Lighting,ceiling light,down light and panel light;
  • 3 years warranty.

More Details

Model LKAD041D-C
輸入             Input AC電壓范圍/AC Voltage range 200-240V
頻率/Frequency 50/60hz
諧波/THD ≤10%/230VAC
功率因數/Power factor 0.98
輸出      Output 額定電壓/Rated voltage 40V
空載電壓/No-load Voltage 48V
DC電壓范圍/DC voltage range 5-43V
DC電流范圍/DC current range 1000mA
電流精度/Current precision (+/-)5%
額定功率/Rated power 45W
輸入紋波/Output ripple               <200mV
開機延時/Setup Time ≤0.5s/230VAC
使用環境    Environment Requirements 工作溫度/濕度要求                    Operating Temp./RH -30～+45℃/20～95%
儲存溫度,濕度要求                   Storage Temp./RH  -40～+80℃/10～95%
安全和電磁兼容 認證編號/Certificate                     IEC61347-2-13   EN6147-2-13
                    EN55015
                    Fcc Part15B
其他 尺寸/Size 162x23.5x30mm
重量/Net weight /
