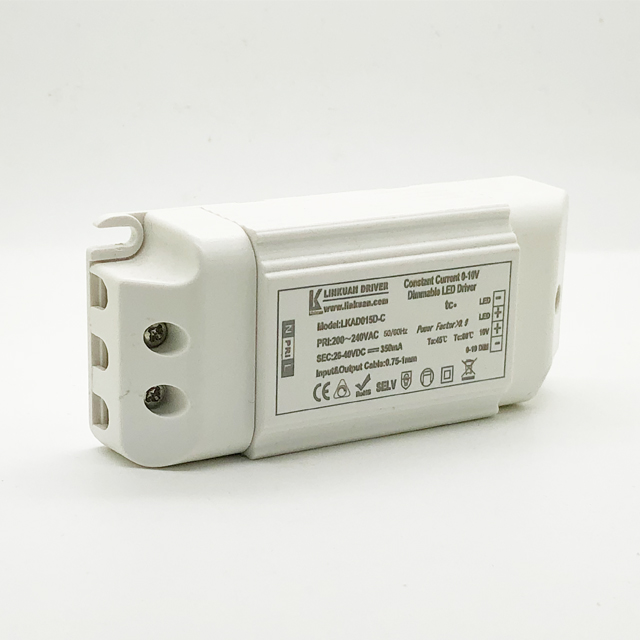

LKAD015D-C 15W 5-42V 350mA 0-10V Dimming LED drivers
  • LKAD015D-C 15W 5-42V 350mA 0-10V Dimming LED drivers

LKAD015D-C 15W 5-42V 350mA 0-10V Dimming LED drivers

  • Product model : LKAD015D-C
  • Input voltage : 200-240Vac
  • Output power(W) : 15W
  • Output voltage : 5-42Vdc
  • Output current(A) : 150-350mA
  • Light adjustment : 0-10V Dimming
  • Size(MM) : 110x44x26mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD015D-C 15W 5-42V 350mA 0-10V Dimming LED drivers


Features

  • 200-240VAC(50/60Hz) Input
  • High efficiency, high power factor, high stability, high light ratio
  • Flicker free
  • Short circuit,over voltage,over current and over temperature protection;
  • Remote control performance is stable, any angle direction can be controlled.
  • independent, ClassⅡ constant current type;
  • degree of protection IP20;
  • can be achieved Lighting,ceiling light,down light and panel light;
  • 3 years warranty.

More Details

Model LKAD015D-C
輸入             Input AC電壓范圍/AC Voltage range 220-240V
頻率/Frequency 50/60hz
諧波/THD ≤10%/230VAC
功率因數/Power factor 0.96
輸出      Output 額定電壓/Rated voltage 42V
空載電壓/No-load Voltage 48V
DC電壓范圍/DC voltage range 20-42V
DC電流范圍/DC current range 320mA
電流精度/Current precision (+/-)5%
額定功率/Rated power 13W
輸入紋波/Output ripple               <200mV
開機延時/Setup Time ≤0.5s/230VAC
使用環境    Environment Requirements 工作溫度/濕度要求                    Operating Temp./RH -30～+45℃/20～95%
儲存溫度,濕度要求                   Storage Temp./RH  -40～+80℃/10～95%
安全和電磁兼容 認證編號/Certificate                     IEC61347-2-13   EN6147-2-13
                    EN55015
                    Fcc Part15B
其他 尺寸/Size 102x44x26mm
重量/Net weight /
