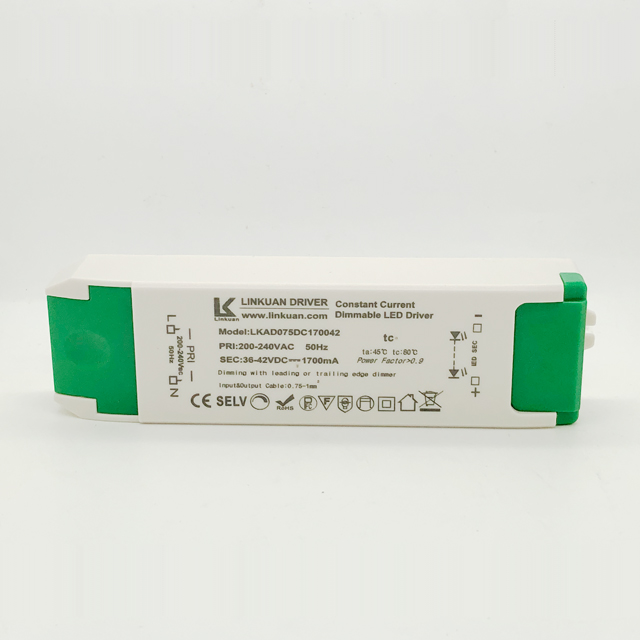

LKAD075D 71W 25-42V 1750mA Dimmable LED drivers
  • LKAD075D 71W 25-42V 1750mA Dimmable LED drivers

LKAD075D 71W 25-42V 1750mA Dimmable LED drivers

  • Product model : LKAD075D
  • Input voltage : 200-240Vac
  • Output power(W) : 71W
  • Output voltage : 45-80Vdc/25-42Vdc
  • Output current(A) : 550-850mA/1100-1750mA
  • Light adjustment : Triac Dimming
  • Size(MM) : 175 x 50 x 30mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD075D SAA CE approved 71W 25-42V 1750mA Dimmable LED drivers

Features

  • 200-240VAC(50/60Hz) Input
  • Isolated, leading (or trailing) triac dimming,dimming much smoothly;
  • Flicker free
  • Hight efficiency,hight PF,good steady;
  • Short circuit,over voltage,over current and over temperature protection;
  • 100% full load burn-in test;
  • CE approved;
  • ndependent, ClassⅡ constant current type;
  • degree of protection IP20;
  • suitable for LED lighting,ceiling light,down light and panel light;
  • 3 years warranty.



More Details

Model LKAD075D
輸入             Input AC電壓范圍/AC Voltage range 208-265V
頻率/Frequency 50/60hz
諧波/THD /
功率因數/Power factor 0.95/230VAC
輸出      Output 額定電壓/Rated voltage 40V
空載電壓/No-load Voltage 48V
DC電壓范圍/DC voltage range 25-42
DC電流范圍/DC current range 700-1500mA
電流精度/Current precision (+/-)3%
額定功率/Rated power 63W
開機延時/Setup Time ≤0.5s/230VAC
使用環境    Environment Requirements 工作溫度/濕度要求                    Operating Temp./RH -30～+45℃/20～95%
儲存溫度,濕度要求                   Storage Temp./RH -40～+80℃/10～95%
安全和電磁兼容 認證編號/Certificate IEC61347-2-13   EN6147-2-13
EMC    EN55015
其他 尺寸/Size L175mmxW50mmxH30mm
重量/Net weight 150g
