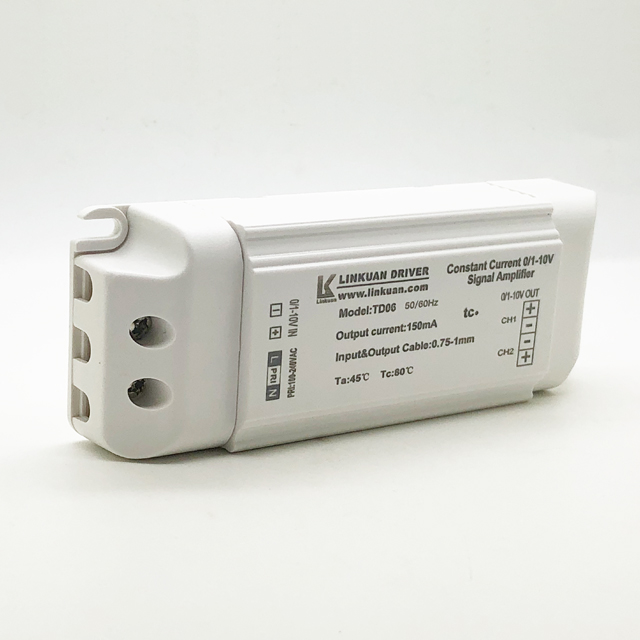

TD06 0-10V Signal Amplifier
  • TD06 0-10V Signal Amplifier

TD06 0-10V Signal Amplifier

  • Product model : TD06
  • Input voltage : 100-240Vac (50/60Hz)
  • Output power(W) : 2W
  • Output voltage : 0-10V/1-5V
  • Output current(A) : 150mA MAX
  • Light adjustment : 0-10V Dimming
  • Size(MM) : 121x44x26mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

TD06  0-10V Signal Amplifier


Features

  • Support 0-10V and 1-10V signal input
  • 0-10V and 1-10V output (correspond to input)
  • Output Voltage in high precision
  • Output power up to 150mA，able to connect up to hundreds of drivers
  • Use high quality amplifier components
  • 2 - way output interface for easy connection
  • No external 12V power supply is required, and it is directly connected tothe municipal power supply for use


More Details
