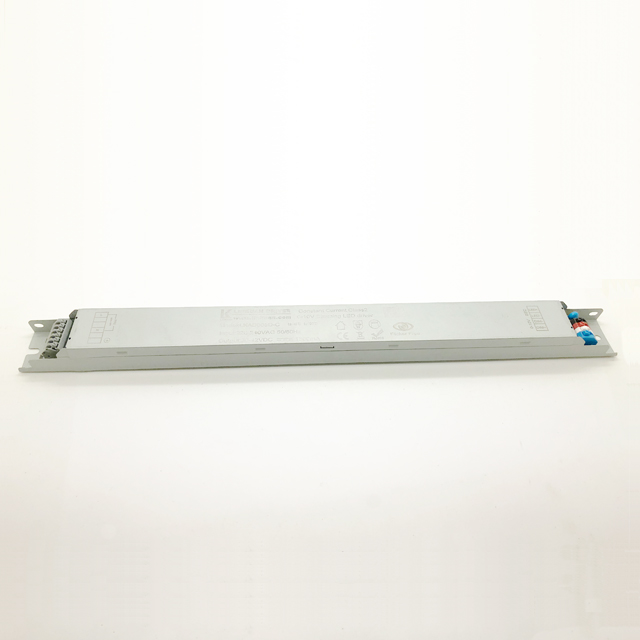

LKAD065V-C 66W 12/24V 5.5A/2.7A Linear Lamp 0-10V dimming led driver
  • LKAD065V-C 66W 12/24V 5.5A/2.7A Linear Lamp 0-10V dimming led driver

LKAD065V-C 66W 12/24V 5.5A/2.7A Linear Lamp 0-10V dimming led driver

  • Product model : LKAD065V-C
  • Input voltage : 200-240Vac
  • Output power(W) : 66W
  • Output voltage : 12Vdc/24Vdc
  • Output current(A) : 5.5A/2.7A
  • Light adjustment : 0-10V Dimming
  • Size(MM) : 355x30x20mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD065V-C 66W 12/24V 5.5A/2.7A Linear Lamp 0-10V dimming  led driver


Features

  • 200-240Vacc(50/60Hz) Input
  • Hight efficiency,hight PF,good steady;
  • Isolated,0-10V dimming ,adjusting much smoothly
  • independent, ClassⅡconstant current type;
  • short circuit/over load/over current/ over temperature protection;
  • 100% full load burn-in test;
  • degree of protection IP20;
  • Special for LED linear lamp, LED grille lamp;
  • 5 years warranty.

More Details

Model LKAD065V-C
輸入             Input AC電壓范圍/AC Voltage range 200-240V
頻率/Frequency 50/60hz
諧波/THD ≤8%/230VAC
功率因數/Power factor 0.97/230VAC
輸出      Output 額定電壓/Rated voltage 12V
空載電壓/No-load Voltage 12.5V
DC電壓范圍/DC voltage range 12V
DC電流范圍/DC current range 5.5A
電流精度/Current precision (+/-)3%
額定功率/Rated power 66W
開機延時/Setup Time ≤0.5s/230VAC
使用環境    Environment Requirements 工作溫度/濕度要求                    Operating Temp./RH -30～+45℃/20～95%
儲存溫度,濕度要求                   Storage Temp./RH  -40～+80℃/10～95%
安全和電磁兼容 認證編號/Certificate CE
其他 尺寸/Size 355x30x20mm
重量/Net weight /
