| Authentication: |

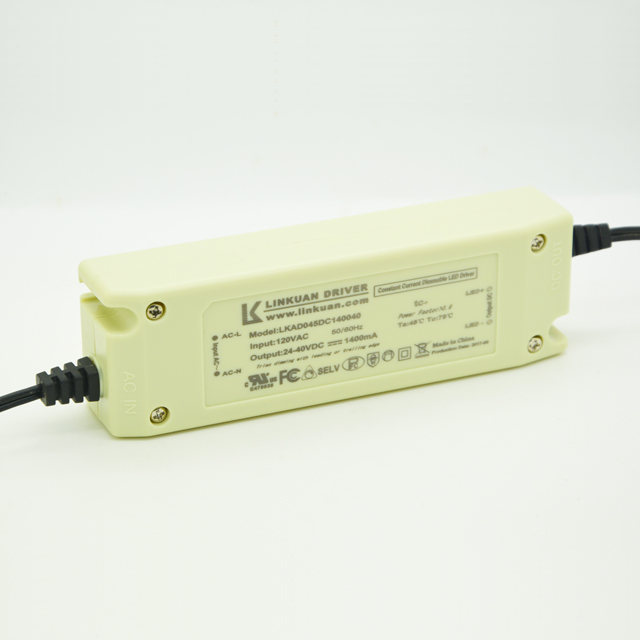

| Model | LKAD045D | |||||
| 輸入 Input | AC電壓范圍/AC Voltage range | 90-132V | ||||
| 頻率/Frequency | 50/60hz | |||||
| 諧波/THD | ||||||
| 功率因數(shù)/Power factor | 0.99/110VAC | |||||
| 輸出 Output | 額定電壓/Rated voltage | 42V | ||||
| 空載電壓/No-load Voltage | 45V | |||||
| DC電壓范圍/DC voltage range | 36-42V | |||||
| DC電流范圍/DC current range | 1450-1530mA | |||||
| 電流精度/Current precision | (+/-)3% | |||||
| 額定功率/Rated power | 63W | |||||
| 開機延時/Setup Time | ≤0.5s/230VAC | |||||
| 使用環(huán)境 Environment Requirements | 工作溫度/濕度要求 Operating Temp./RH | -30～+45℃/20～95% | ||||
| 儲存溫度,濕度要求 Storage Temp./RH | -40～+80℃/10～95% | |||||
| 安全和電磁兼容 | 認證編號/Certificate | UL:E478938 | ||||
| FCC:WTD14S1120212E | ||||||
| 其他 | 尺寸/Size | L145mm * W46mm * H32mm | ||||
| 重量/Net weight | --- | |||||
